Hand Lever Valves

Hand Lever Valves (pdf)

Download

3/2 Hand Lever Valves

5/2 Hand Lever Valves

3/2 Hand Lever Valves

5/3 Hand Lever Valves

3/2 Hand Lever Valves

5/3 Hand Lever Valves

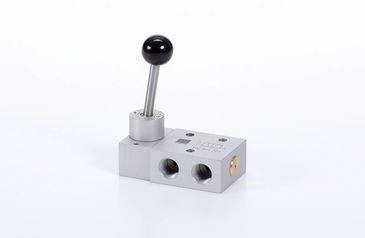

3/2 Hand Lever Valves

HV 311 _ _1

3/2 hand lever valve

monostable

mechanical spring return

NC or NO

HVR 320 _ _1

3/2 hand lever valve

bistable - two positions

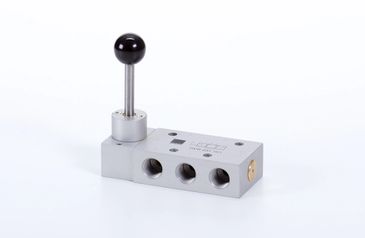

5/2 Hand Lever Valves

HV 511 _ _1

HVR 520 _ _1

5/2 hand lever valve

monostable

mechanical spring return

NC or NO

HVR 520 _ _1

5/2 hand lever valve

bistable - two positions

5/3 Hand Lever Valves

Centre Closed

Centre Pressurized

Centre Exhausted

Centre Pressurized

Centre Exhausted

Centre Pressurized

Centre Closed

HV 531 _ _1

HVR 531 _ _1

Hand lever valve

spring return to middle position

centre closed

HVR 531 _ _1

Hand lever valve

indexed

centre closed

Centre Exhausted

HV 532 _ _1

HVR 532 _ _1

Hand lever valve

spring return to middle position

centre exhausted

HVR 532 _ _1

Hand lever valve

indexed

centre exhausted

Centre Pressurized

HV 533 _ _1

HVR 533 _ _1

Hand lever valve

spring return to middle position

centre pressurized

HVR 533 _ _1

Hand lever valve

indexed

centre pressurized
