3 and 5 way valves - 10mm width
3way valves - 16 to 30mm wide
5way valves - 16 to 30mm wide
5way valves - 16 to 30mm wide
BPM 5 304
MMD 231 304
MMD 231 304
Blank plate
for manifold type RM 5_ _ 304
MMD 231 304
MMD 231 304
MMD 231 304
Double 3/2 solenoid valve
NC & NC
3mm ports
monostable, air return
with manual override
for manifold plate mounting
all ports in plate, 24DC
MMD 232 304
MMD 231 304
Double 3/2 solenoid valve
NC & NO
3mm ports
monostable, air return
with manual override
for manifold plate mounting
all ports in plate, 24DC
MMD 233 304
Double 3/2 solenoid valve
NO & NO
3mm ports
monostable, air return
with manual override
for manifold plate mounting
all ports in plate, 24DC
MMD 510 304
MMD 510 304
5/2 solenoid valve
3mm ports
monostable, air return
with manual override
for manifold plate mounting
all ports in plate, 24DC
MMD 520 304
MMD 510 304
5/2 solenoid valve
3mm ports
bistable
with manual override
for manifold plate mounting
all ports in plate, 24DC
MMD 531 304
MMD 531 304
MMD 531 304
5/3 solenoid valve
3mm ports
spring return to middle position
centre closed
with manual override
for manifold plate mounting
all ports in plate, 24DC
MMD 532 304
MMD 531 304
MMD 531 304
5/3 solenoid valve
3mm ports
spring return to middle position
centre exhausted
with manual override
for manifold plate mounting
all ports in plate, 24DC
MMD 533 304
MMD 531 304
MMD 533 304
5/3 solenoid valve
3mm ports
spring return to middle position
centre pressurized
with manual override
for manifold plate mounting
all ports in plate, 24DC
RM 5 304 L
RM 5 304 L
MMD 533 304
Left end plate
for modular manifold with MMD valves
RM 5 304 R
RM 5 304 L
RM 5 304 R
Right end plate
for modular manifold with MMD valves
RM 5 344
RM 5 304 L
RM 5 304 R
Individual position for modular manifold with MMD valves.
Pilot operated valves
Pilot operated valves
Pilot operated valves
Direct acting valves
Pilot operated valves
Pilot operated valves
G1/8" with 5mm ports in plate
G3/8" with 10mm ports in plate
G1/8" with 5mm ports in plate
G1/4" with 7mm ports in plate
G3/8" with 10mm ports in plate
G1/8" with 5mm ports in plate
G3/8" with 10mm ports in plate
G3/8" with 10mm ports in plate
G3/8" with 10mm ports in plate
G1/2" with 12mm ports in plate
G3/8" with 10mm ports in plate
G1/8" or 6mm pif with 4mm ports in plate
4mm pif with 3mm ports in plate
BP 3 503
MH 310 501 G
BP 3 503
Blanking plate for manifolds
type RB 3_ _ 503 G
BS 503
MH 310 501 G
BP 3 503
Plug for manifolds
types RB 3_ _ 503 G and RB 3_ _ 703 G
to use the manifold with two
different pressures
can be assembled between
two valve stations
MH 310 501 G
MH 310 501 G
MH 310 501 G Ex m
3/2 solenoid valve
G1/8" ports
monostable
NC, air return
with manual override
G series (in-line and manifold mounted)
MH 310 501 G Ex m
MH 310 501 G Ex m
3/2 solenoid valve
G1/8" ports
monostable
NC, air return
with manual override
G series (in-line and manifold mounted)
Atex / Explosion proof rating
MH 311 501 G
3/2 solenoid valve
G1/8" ports
monostable
NC, mechanical spring
with manual override
G series (in-line and manifold mounted)
MH 320 501 G
3/2 solenoid valve
G1/8" ports
bistable
with manual override
G series (in-line and manifold mounted)
MH 320 501 G Ex m
MOH 310 501 G Ex m
MH 320 501 G Ex m
3/2 solenoid valve
G1/8" ports
bistable
with manual override
G series (in-line and manifold mounted)
Atex / Explosion proof rating
MOH 310 501 G
MOH 310 501 G Ex m
MH 320 501 G Ex m
3/2 solenoid valve
G1/8" ports
monostable
NO, air return
with manual override
G series (in-line and manifold mounted)
MOH 310 501 G Ex m
MOH 310 501 G Ex m
MOH 310 501 G Ex m
3/2 solenoid valve
G1/8" ports
monostable
NO, air return
with manual override
G series (in-line and manifold mounted)
Atex / Explosion proof rating
MOH 311 501 G
MOH 311 501 G
MOH 310 501 G Ex m
3/2 solenoid valve
G1/8" ports
monostable
NO, mechanical spring
with manual override
G series (in-line and manifold mounted)
P 310 501 G
MOH 311 501 G
P 310 501 G
3/2 pilot valve
G1/8" ports
monostable
air return
G series (in-line and manifold mounted)
P 311 501 G
MOH 311 501 G
P 310 501 G
3/2 pilot valve
G1/8" ports
monostable
mechanical spring
G series (in-line and manifold mounted)

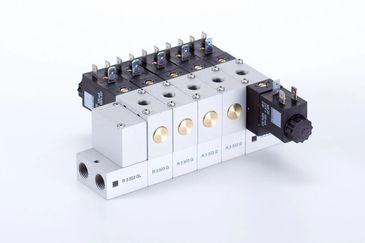

R 3 503 G
R 3 503 GL
R 3 503 GL
Individual position for modular manifold with 501 G and 503 valves.
R 3 503 GL
R 3 503 GL
R 3 503 GL
Left end plate for modular manifold
for 501 G and 503 valves.
R 3 503 GR
R 3 503 GL
R 3 503 GR
Right end plate for modular manifold
for 501 G and 503 valves.
