DRN 3 _ _ _
Namur flow regulator
for 3/2 NAMUR solenoid valve
finite control
adjustable by hand or with a tool
DRN 5 _ _ _
Namur flow regulator
for 5/2 NAMUR solenoid valve
finite control in both directions
adjustable by hand or with a tool
DSVN
Pressure applied safety valve
Namur interface
Will lock air inside the actuator on air supply failure.
UB 701
Air recirculation block
Namur interface
Prevents ambiant air from entering the spring chamber of the single acting actuator.
SENR
PN 411 721
Quick exhaust block
Namur interface
G1/4 or 1/4" NPT air supply
4 different versions
PN 411 721
PN 411 721
PN 411 721
Namur Pilot valve
Bypass
with G1/4" port
BHN
PN 411 721
CBN 700
Namur Block and bleed valve
BHN 601: act exhaust, locks in work mode.
BHN 601 01: actuator exhausted,
locks in exhaust mode.
BHN 611 01: actuator blocked,
locks in block mode.
BHN 420 701: actuator chambers connected, can move a manual gear.
CBN 700
PN 411 721
CBN 700
Namur control block
with 2 phases
for inflatable seated butterfly valves
HVRZN
HVRZN
HVRZN
Namur hand lever valve
to override a positioner
HVRZN 731 701: 5/2
HVRZN 731 702: 5/3

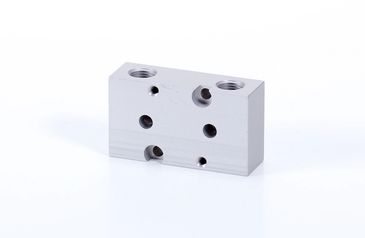

ZVP Blocks
ZVP Blocks
ZVP Blocks
Adapter block to mount a Namur solenoid valve onto a cylinder. Offers a sturdy installation. NPT also available.
ZVP 701: G1/4" banjo, Namur 1/4"
ZVP 101: G3/8" banjo, Namur 1/4"
ZVP 121: G1/2" banjo, Namur 1/2"
ZVP 121-701: G1/2" banjo, Namur 1/4"

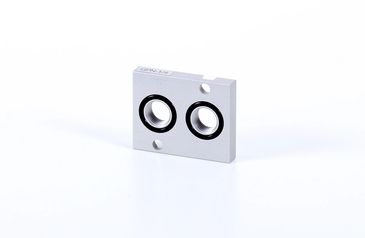

GPN Plates
ZVP Blocks
ZVP Blocks
Plate adding threads to a
Namur solenoid valve.
GPN 1/4: G1/4 threads
GPN 1/4 NPT: 1/4" NPT threads
ZPN Plates
FPNW Blocks
FPNW Blocks
Spacer plate for Namur solenoid valves.
ZPN 5: 5mm thick plate, Namur 1/4"
ZPN 8: 8mm plate, Namur 1/4"
ZPN 6-5: 5mm plate, Namur 1/2"
ZPN 6-10: transition plate for Namur 1/4" onto a Namur 1/2" actuator.
ZPN 701 90: to rotate a Namur 1/4" solenoid valve by 90°.
ZPN 1/4-1/2: transition plate for Namur 1/2" solenoid valve onto a Namur 1/4" actuator.

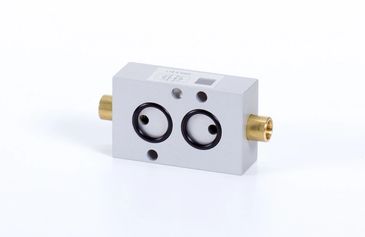

FPNW Blocks
FPNW Blocks
FPNW Blocks
Adaptor plate to convert a Namur solenoid valve into an in-line valve.
FPNW 22 -1/4: Namur 1/4" with G1/4" ports
FPNW 22 -1/4 NPT: Namur 1/4" with
1/4" NPT ports/
